Saxena and Aditya Gaiha
Working Paper No. 6
Card Payment Systems
Saxena and Aditya Gaiha
work is a compilation of current knowledge relating to a new technology known as
Smart Card. We begin by
understanding the various physical and technical characteristic features of
Smart Cards and then move on to various operational issues involved in setting
up of a Smart Card-based Payment System. We present a foundation for
understanding Smart Cards and follow it up by specific application software that
is required for understanding the technology -- and challenges -- associated
with the uses of Smart Cards for banking applications. Java Card and Windows for
Smart Cards (WfSC) have also been separately discussed. The paper concludes with
an overview of Smart Cards for payment systems in the country (SMARS) along with
emerging scenarios, and also focuses on the prevailing multi-application on
What is a Smart Card?
Card is a fully functioning computer system built on a single chip (integrated
circuit). This computer system has important similarities and differences from
other kinds of traditional computers. Like others, it has a central processing
unit (CPU) and various kinds of memory. Unlike others, since cost is a major
constraint, these computers are sold for a few hundred of Rupees. The chips must
also be as small as possible to meet the form-factor requirements of bank card
applications (ATMs, Point of Sale devices, etc.).
Smart Card Memory
Cards use several types of memory, all implemented within a single chip. These
memory is generally ROM (Read Only Memory), placed in the chip hardware during
manufacturing. It cannot be changed, although its operation can be blocked
through logical operations. Programmable nonvolatile memory is generally EEPROM
(Electrically Erasable Programmable Read Only Memory). It can be programmed
after the chip is manufactured, exposing both its strength and its weakness.
E-squared PROM permits making changes to programs, increasing the Smart Card's
flexibility but also exposes it to various types of nasty security attacks.
Volatile memory is generally RAM (Random Access Memory), used as a temporary
storage area for interim operations. It loses its contents when power is removed
from the chip. Smart Card programming requires special skills since programs
must be written using the smallest amount of memory possible. One major factor
in understanding Smart Cards is realizing the implications of when a program is
added to what type of memory. If a program is added in ROM, it must be added
when the basic chip is manufactured, and no changes can be made to it. If
programs are added to EEPROM, they can be added both prior to issuance of the
card or afterwards.
Smart Card Processing Power
Smart Cards today use 8-bit microprocessors. Although more powerful 16- and even
32-bit chips will be available soon, none have multi-threading and other
powerful features that are common in standard computers. Memory sizes range from
as little as 1K of programmable non-volatile memory to as much as 24K, with
larger memory chips coming soon and ROM size is similarly limited. However large
memory may become, the total amount will always be relatively limited compared
to normal computer capabilities. That imposes the requirement of strict
discipline in coding and limits the defensive measures that can be implemented.
chip family has a single CPU with many different memory configurations. This is
to accommodate programs of varying sizes and states of maturity. The smallest
chip in the family may have 4 K of ROM, 256 bits of RAM, and 1 K of EEPROM. The
next size may have the same ROM and RAM, but varying amounts of EEPROM - 2K or 4
K, for example. The next members of the family may have 6 K of ROM, 256 bits of
RAM, and 6, 8, or 10 K of EEPROM. Another possibility is 8 K ROM and 4 or 6 K of
EEPROM. A cryptographic co-processor may also be added for those applications
that require faster execution of cryptographic algorithms, sometimes with some
additional dedicated RAM.
Soft Mask and Hard Mask Cards
Card industry experts refer to Smart Cards as being either soft mask or hard
mask. Masking refers to where an application program is placed. If the
application is placed in EEPROM, it is termed a soft mask card. If most of the
application is placed in ROM, it is called a hard mask card, though variable
features and personalization data is still placed in EEPROM.
commonly use a soft mask card for pilot testing new applications and then move
on to hard mask cards for larger deployments. However, some applications have
limited deployments that are never taken to hard mask, as hard masking is
expensive in terms of both time and money. Hard masks may also not be justified
for some applications, such as an employee identification card for small
cards into soft or hard masks works well for single application cards, but is
often confusing when there are multiple applications on the same chip. That is,
a single card may have one application in ROM and thus be considered a hard mask
card with respect to that application, but also have another application placed
in EEPROM, and so it may be a soft mask card with respect to that application.

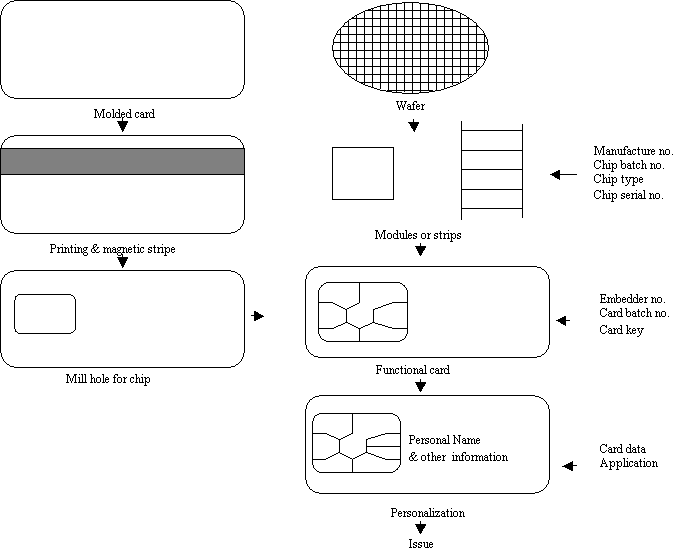

– 1 : Smart Card Production Cycle
Smart Cards are currently programmed in low-level languages based on proprietary
Smart Card operating systems. Some of the programming has been done in the
chip's native instruction set (generally Motorola 6805, Intel 8051, or Hitachi
H8). Though this results in highly efficient code, it is much more difficult to
program than higher-level languages. The number of programmers who could do this
type of programming is quite limited.
2000, a new type of card has shown up, sometimes called a re-configurable card.
These re-configurable Smart Cards have a more robust operating system that
permits the addition or deletion of application code after the card is issued.
Such cards are generally programmed in Java, Windows for Smart Cards, or MEL
(the Multos programming language). These cards may have a card operating system
and additional layers, which offer industry or application specific features.
The operating system must ensure that only authorized applications can be added
after the card is issued to the cardholder and that deletions of applications
are only done under proper authorization. These re-configurable cards use
programming languages that are very well known in the software community, which
is one of their advantages. Many programmers will be able to write Smart Card
programs that will run on these operating systems, although the special skill of
being able to write very memory efficient programs will be needed.
the next section we present Smart Cards from the perspective of their life cycle
-- from pre-personalization to disposal -- where functionality and security
concerns constantly mutate.
Smart Card Life Cycles
Card life cycles are often very complex; development of a new card usually
requires the involvement of multiple developers, progressing over several years,
with multiple paths, and follows evolutionary growth -- each new version of a
specific card product is an improvement over the earlier version.
the context of this working paper, the life cycle represents the process of
developing silicon, software, and systems to perform useful functions. There is
no single typical Smart Card life cycle, rather, there are several cycles and
several unique routes through them. Application life cycles -- which often
intersect with several card life cycles -- are unique to each application and no
single standard model exists for all of them. When dealing with applications,
the card issuer (bank in case of payment system, etc.) normally determines the
application life cycle.
are also many uses for Smart Cards and the chips that are used in them. The
security needs of Smart Cards, and Smart Card chips, range from nonexistent to
high. Security generally has a cost, in money, time to market, and Smart Card
markets are very price sensitive. Building a Smart Card typically involves a
constant concern for cost containment and often means a trade-off of cost
against other desirable things. Various decisions are possible and are often
driven by conflicting and quickly changing technological, security, and market
needs. Minimally, a Smart Card must meet some user requirements, without which
there will be no market. It must be designed, manufactured, issued, used, and
taken out of use. Each of these steps requires discussion.
Smart Cards begin with user requirements. These requirements drive the rest of
the process. The user requirements may be well known and have high security
needs, such as those for the Secure Application Module (SAM) implemented on a
Smart Card in some stored value systems. Alternatively, the user requirements
may be generally stated and only partially known, both to the users and the
developers involved. They also may be incomplete, in the sense that additional
details must be specified in order to build a functioning card. This can either
be because the user is unfamiliar with the technology or because the user is
familiar enough with the technology to want to use several different suppliers
in order to be independent of any one of them. In the case of the EMV
specifications, this desire was coupled with the fact that there were three
different international organizations involved, each of which wanted scope to
tailor the application to specific regional, national, and market needs, and
also wanted international interoperability. This kind of application typically
goes through a series of different cards, refining the user requirements as time
Cards put applications and operating systems into integrated circuits that are
embedded in a printed card. Each of these (application, operating system,
integrated circuit, and card) is generally designed and manufactured by a
different company, although the application and the operating system are
sometimes done by the card integrator company. The design stage may occur
sequentially or simultaneously.
involves several developers: application, operating system, chip, and card
manufacturing may all be done by separate companies. The chip is manufactured in
a semiconductor foundry, the operating system and application are software, and
the card is manufactured in a factory dedicated to that purpose. All must have
appropriate security arrangements, but these are different depending on the kind
of product and company involved. Integrated circuits are tested after the wafer
is manufactured. Application(s) may be added during the chip manufacturing
stage, when the card is manufactured, or after the card has been issued. The
chip manufacturer may not know what application(s) will be added to the chip if
the applications are added during card manufacture (personalization) or after
the card has been issued (post-issuance downloads to the chip).
banking application is issued by a financial institution, which has a contract
with the end user that governs use of the application. Debit and credit
applications typically are used to access an account at the issuing bank. The
application developer may or may not be the card issuer. The card issuer may
authorize which applications may be placed on the card, each with its own life
cycles and requirements.
application is used in a transaction, which requires supporting software in a
Card Acceptance Device (CAD) or Point of Interaction (POI).
End of Card Life
cards have a useful life and an expiration date. The terminal will not accept a
transaction from a card that has expired. SAMs are issued in relatively limited
numbers and are usually under strict inventory control. They are returned to the
issuer upon the end of card life. The end user card is seldom returned to the
issuer; they are usually simply discarded.
Re-configurable Card Life Cycle Overview
modern versions of Smart Cards, based on dynamic card operating system features
(e.g. MULTOS, JavaCard, Windows for Smart Cards), are becoming more pervasive in
the marketplace, we will also focus here on the life cycle for these
principal user requirement enables the changing or adding of applications during
the useful life of the card. This requires appropriate security on the program
management functions, as the card will now be subject to virus-like attacks. A
complete operating system is needed, and applications desired in the future may
not yet be known.
operating systems to support these cards are Java, Windows for Smart Cards, or
MEL (the MULTOS programming language). These systems will be covered in the
later part of the paper, prior to application reviews.
of the advantages of these cards is that the programming languages used within
them are well known and many programmers can create applications for them. This
means that the applications will be designed independent of the chip, operating
system, and card designs.
stated earlier, chips, operating systems, cards and applications are
manufactured separately. Operating systems are generally added to the chip at
the chip manufacturing stage. Chips are embedded in modules and modules embedded
in cards in the same way as with other cards.
cards are personalized for the end user and issued in the same way as other
types of cards are issued. Instruction must be given to the end user on the
proper loading and deletion of applications, which is not needed with the other
types of cards. The end user has more options available than with the other
types of cards, and hence more opportunity to make mistakes.
with the other types of cards, these are also used to conduct transactions.
Applications must be properly loaded in order to work, and each application will
have its own usage instructions and requirements.
End of Life
cards are just beginning to come to market and many of the issues regarding the
end of card life remain unknown.
Multi-application Smart Card
Smart Cards are delivered to card issuers and personalization bureaus that
operate on the behalf of card issuers with an operating system (OS) already
embedded on the chip. These cards are then ready for personalization activities
that enable the card's use at the point of sale or with an attached reader on a
PC. Until the cards undergo personalization and application loading activities,
their abilities are limited to what the primitive card OS permits. The
microprocessor chips that support these card OSs are designed and optimized for
a specific OS, providing the basic platform for those functions and programs the
issuer wishes to support.
can think of the card OS as a layer of abstraction above the microprocessor and
cryptographic co-processor (if present) on the card to insulate developers from
the details about the chip's instruction set. This layer of insulation permits a
wide variety of developers to create Smart Card applications, and helps to drive
down the costs of development and maintenance while helping to assure high
degrees of security and flexibility.
early versions of Smart Cards had no real conception of an operating system.
Rather they had application programs 'burned in' at the time of manufacture to
support a single purpose (stored value, hold credentials, etc.). Today's
multi-application Smart Cards use the card operating system (OS) to create a
dynamic usage environment that permits a variety of applications and associated
card OSs are designed to meet the needs of today's business requirements, which
include the following:
was originally developed by Natwest Bank in the UK to support the MONDEX e-purse
application. MONDEX has since spun off from Natwest into a subsidiary of
Mastercard International. Banks and other volume issuers can license MULTOS
royalty-free for use with their own branded Smart Card products. Developers
build MULTOS applications using the MULTOS Executable Language (MEL) development
kit for card issuers or to license common applications to any bank or issuer who
wants to place them on their cards. Some of the applications already developed
or being developed for MULTOS include:
is enjoying wide industry support from a variety of issuers, including:
of individual banks around the world have committed to MULTOS, and today over 14
million cards are on their way, intended for a variety of new pilot and
production uses. The MAOSCO Consortium, established to promote MULTOS, provides
a central point of coordination for all parties interested in MULTOS
Platform was developed by Visa International to support banking applications. It
is now managed by GlobalPlatform, a new consortium intended to promote Open
Platform beyond banking uses. Open Platform is an architecture and sets
standards to define and manage dynamic multi-application Smart Cards. Open
Platform is an added layer of abstraction atop other card operating systems,
including Java Card from Sun Microsystems and Windows for Smart Cards from
Microsoft, described later in the paper, Open Platform includes:
Platform operates with standard underlying card OSs and POS terminal
technologies, adding additional security and functionality to the process. Some
of the technology benefits of Open Platform include:
Open Platform Card Architecture Specification defines an operating system
component (Java Card or Windows for Smart Cards), a virtual machine, an API, the
Open Platform API, and a set of Open Platform applications. Open Platform
maintains the security and risk management aspects of the applications loaded on
the card using a resource called Card Manager (CM). CM represents the issuer's
interests on the card by preventing and reporting any unauthorized uses of the
card. CM supports these four major functions:
Platform has been extended to support all types of new uses and applications,
including set-top boxes, PDAs, smart phones, etc. Although the Visa Open
Platform (VOP) version is intended to support the issuance of Smart Cards by
banks and other financial services companies for their customers, Open Platform
is being promoted by Global Platform to industries outside the purview of
Java Card platform enables Java technology to run on Smart Cards and other
devices that possess limited memory. The Java Card API permits applications
written for one Smart Card platform using Java Card to run on any other such
platform. The Java Card Application Environment (JCAE) is licensed on an
OEM-basis to Smart Card manufacturers, who produce cards and then sell them as
products that support Open Platform or are used as it is.
Java Card API defines the calling conventions by which an applet accesses the
Java Card Runtime Environment (JCRE) and native services. It also allows
applications written for one Java Card-enabled platform to run on any other Java
of the benefits of Java Card technology are:
Card technology was developed to preserve many of the benefits of the Java
programming language while enabling Java technology for use on Smart Cards. The
Virtual Machine (VM), the language definition, and the core packages are compact
and optimized for the resource-constrained environment of Smart Cards. Several
of the off-the-shelf development tools for Java can be used to develop applets
for the Java Card platform.
Windows for Smart Cards
for Smart Cards (WfSC) is touted by Microsoft as a means of turning a Smart Card
into a near-traditional microprocessor environment without a Graphical User
Interface (GUI). It's intended to enhance the uses of existing networks based on
Windows95/98, Windows NT, and Windows 2000. Microsoft describes WfSC as the key
to a lock that protects business data. The keys are customized to each user and
may serve as a replacement to user ID and password logons. WfSC, in conjunction
with one or more of the Windows OSs, bring about what Microsoft calls the 4Ps:
WfSC can help prevent multiple log-ons from occurring on different computers to reduce the problems associated with stolen passwords and stolen identities.
Because WfSC is an extension of Windows, developers and users gain consistent experience when dealing with application development tools and application program uses. With standard Windows APIs, issuers of WfSC cards can customize how they are deployed to best meet business and security requirements.
Reduced credit card fraud, reduced identity theft, and fewer problems with repudiated transactions helps banks and other financial services issuers to realize higher profits and reduced computer security incidents.
WfSC products can be used to promote a business to their customers and partners through advertisements and offers on the card, as well as loyalty programs that reward customers to shop and spend.
a Smart Card framework, payments systems are enhanced and made more impervious
to fraud and security problems by providing both new applications and a second
factor for user authentication. Converging Smart Card technology with Internet
technology yields a synergy, and entirely new possibilities emerge.
Smart Card based payment scheme developed for banks is essentially due to the
co-operative efforts of a group comprising of Reserve Bank of India, I.I.T (Mumbai)
and IDRBT. Finally, the group has expanded to 17 partners, each actively
involved in developing a smart card based payment system for banks using open
standards and ensuring interoperability among the participating banks.
SMARS began in 1996. The primary aim of the project was to establish
interoperability between different technologies and standards of cards, card
readers and the clearing and settlement system. Amongst the other important aims
were, the making of technical standards for cards, card readers and the clearing
and settlement system, operational standards for operating smart cards and
preparation of a business model for smart card deployment.
project was started as a pilot project in December, 1998, at IIT, Mumbai campus.
The main aim was to practically establish an interoperable system using
different products of different technology vendors. Two bank branches, Canara
Bank and State Bank of India, in IIT, Mumbai, issued cards to all their savings
bank account holders. Card reader machines of different vendors were deployed at
merchant establishments in the IIT campus. The pilot project worked very
efficiently at the IIT campus.
preparation of technical standards was carried out simultaneously along with the
SMARS pilot project. This was a Herculean task and involved concerted effort by
all the partners. The standards were made as open as possible and in order to
follow the internationally emerging standards. The members of SMARS team also
studied the various experiences of similar experiments in different countries
around the world. The aim was to incorporate the best international practices in
the formulation of standards for Smart Cards as payment instruments in India.
The standards were also prepared keeping in mind the future technological
roadmap in Smart Card technology. As a result of the effort, the SMARS team came
up with a set of standards, which were forwarded to the Reserve Bank of India
for consideration. These technical standards pertained to the use of Smart Cards
for a pre-loaded debit functionality. However, the flexibility of loading
additional applications like credit card application was possible on the same
addition to the technical specifications, the SMARS team also formulated a
business model for implementation and a set of operational guidelines for smart
Reserve Bank of India formed a committee to look into the SMARS recommendations.
Based on the recommendations of the committee, the Reserve Bank of India issued
operational guidelines for Smart Card deployment in banks on 16th
November, 1999. Further, the Reserve Bank of India submitted the technical
specifications to the Bureau of Indian Standards for consideration to be adopted
as national standards for Smart Cards in the banking and financial sector. The
Bureau of Indian Standards is now seized of the matter.
various banks and financial institutions wanted to move ahead and deploy smart
cards for payment purposes. Therefore a historic meeting of SMARS was held in
May, 2000. It was decided that IDRBT, Hyderabad, would be the single key
management agency for the debit functionality for smart card deployment in the
country. The set of five common keys were defined jointly by the Reserve Bank of
India, IIT, Mumbai and IDRBT, Hyderabad, and kept in the custody of IDRBT,
Hyderabad. Further, it was decided that IDRBT, Hyderabad would devise the
various policies and procedures in close consultation and coordination with
banks, financial institutions, SMARS partners and industry partners.
set of master keys was released for the first time to IDBI Bank in June, 2000.
In furtherance of the mandate given to IDRBT, Hyderabad, a workshop was held at
IDRBT, Hyderabad, wherein representatives of banks, SMARS partners and various
industry partners were invited. Discussions were held about the policies and
procedures to be followed for key management.
on the discussions held and after a study of the best international practices in
the area of key management, a set of operational policies, guidelines and
procedures were formulated by IDRBT, Hyderabad. The SMARS technical
specifications, being under the consideration of BIS, are available only for
banks and financial institutions that are in the process of implementing Smart
Cards as payment instruments in India.
setting up of a smart cards clearing and settlement system, for settlement of
inter bank transactions, is also required once multiple banks start using smart
cards with interoperability, for debit functionality (individual banks having
the freedom to load multiple applications like credit functionality etc. on the
same card), having being induced into the system with the common set of master
keys and single key management agency having being already put in place.
is still much to be done on the smart card payments system front for it to
become a vibrant means of retail payment mode in the country.
need to introduce internationally acclaimed ‘best practices’ in the Key
Management System (KMS) has to be adopted, so that the essential elements of
secured transactions such as message integrity, card authenticity, data
confidentiality and non-repudiation of transaction are met. The various
‘forces that act as barriers to entry’ for the setting up of an
interoperable Smart Card based payment system can be due to the lax regulatory
framework, poor existing infrastructure and limited geographical spread, which
has to be minimized during the actual commercialization of the Smart Card.
Applications of Smart Cards
applications of Smart Cards today include:
of these applications may have somewhat differing security requirements,
security features, roles, and environmental considerations (e.g., whether they
are used always on-line, always used off-line, usually off-line with the
capability of going on-line, etc.). The security requirements for the operating
software, applications, and the procedures for adding or deleting those
applications must therefore clearly be identified and the security functions
that are present must be appropriate to the type and intended use of the card.
may range from very simple to very complex. For example, a loyalty application
may be no more than an identifying code, such as a hotel or airline frequent
user account code. Most of the information (preferences, total points, etc.) is
stored on a mainframe computer somewhere; the card is only used to access the
account accurately. The application becomes more complex as more of the
information and processing is moved from the computer(s) on the network to the
card, which may be desired so that activity can take place off line.
applications are often complex, since one of the main reasons for moving from
magnetic stripe only uses to Smart Cards permits off line transactions to be
conducted more securely.
the concept of e-Governance emerging as a prime measure for the performance and
efficiency of governmental agencies Smart cards and their multifarious
applications provide ready solution for a secure, efficient, effective form of
governance. There are many potential advantages of e-signatures. A significant
amount of time could be saved in complex negotiations by exchanging documents
electronically instead of passing physical documents back and forth. Storing
documents electronically instead of in paper form could save tremendous amounts
of space. Today’s technology presents many options, including
credit-card-sized smart cards that can be scanned into a computer through
various encryption methods.
Various functions of an e-Government envisage the extensive usage of workflow emails and database applications which in turn can be securely and efficiently implemented with the use of Digital Certificate on Smart cards. For example, digital signatures that use encrypted algorithms, in combination with passwords, can be employed to identify an individual. Public-key infrastructure (PKI) is one such technology. With PKI, both senders and receivers have two "keys," each, one public and one private. Passwords and specialized software encrypt and "lock" the document and signature, and a second set of passwords act as the "key" to open the "lock." PKI technology ensures that a document came from a particular computer.
some countries, it is common to demand a toll for using certain roads.
In contrast to blanket fees that are paid for stickers, tolls are usage
dependent and have usually been paid in cash at tollbooths. A few isolated
electronic systems using various types of cards, have been used over the past
few years in toll systems. The control stations were installed along with
motorway on flyovers and sign bridges as necessary. No modifications to the
roadway construction were necessary. The
smart cards used did not contain sophisticated e-purse but only very simple and
fast debiting commands. Another
example of notable mention is of a Smart University where a student at the time
of taking an admission is being provided with a Smart Card for multiple purposes
in the university, which he can use in the lab, the library, access to swimming
pool paying, his hostel/college fees and above all marking his attendance in
possible applications for Smart Cards are extremely diverse and are being
constantly extended with the increasing arithmetic power and storage capacity of
integrated circuits. Smart Cards
are not only devices for various applications like, electronic payments,
authorization, identification etc., but are in fact, the powerful agents for
unshackling the individuality and spontaneity amongst citizens of the 21st
century. It will not be long before Smart Cards prove to be catalyst in a
society that is changing at a breath-taking pace due to the technological
innovations of a gigantic scale never seen before in the history of mankind.
Card Hand Book”, Second Edition, W. Rankl & W. Effing, John Wiley &
sites of manufacturers, solution providers, integrators
software, Smart Cards
about attacks on Smart Cards
and hardware for testing Smart Card terminals
modules; Smart Cards; personalization equipment
on Smart Cards; cryptographic algorithms
Cards; operating systems; terminals
Cards, operating systems, terminals
Card manufacturer; terminals
Java for Smart Cards
specifications for Java on Smart Cards
Smart Cards; Legic
Card operating system
purse, Smart Card operating system
Card manufacturer; terminals; operating systems
